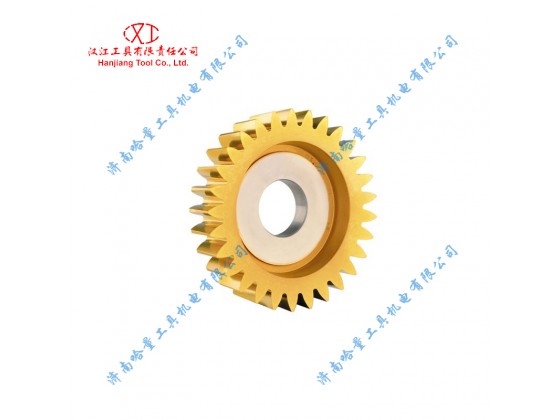

中国标准 盘形直齿插齿刀 GB 6081-85Ⅰ型
型号:盘形直齿插齿刀（GB 6081-85 I）
规格:盘形直齿插齿刀（GB 6081-85 I）
产品简介:
|
●
|
不切顶精切20°压力角直齿圆柱齿轮用插齿刀。
|
|
●
|
插齿刀精度可按下列标准承制： GB 6082-85, DIN 1829-1977, JIS B 4356-85, BS 5246-1976 |
|
●
|
径节制插齿刀亦可承制以下规格范围： 径节(DP)：2 １／４～ 4 公称直径：3″～ 8″ |
|
Nominal
Dia. 公称直径 |
Module
模 数 |
Pitch
Dia. 分圆直径 |
No. of
Teeth 齿 数 |
Hole Dia.
孔 径 |
Width
厚 度 |
|
75mm
|
1
|
76.00
|
76
|
31.743
|
15
|
|
1.25
|
75.00
|
60
|
|||
|
1.5
|
50
|
||||
|
1.75
|
75.25
|
43
|
17
|
||
|
2
|
76.00
|
38
|
|||
|
2.25
|
76.50
|
34
|
|||
|
2.5
|
75.50
|
30
|
|||
|
2.75
|
77.00
|
28
|
|||
|
3
|
75.00
|
25
|
20
|
||
|
3.25
|
78.00
|
24
|
|||
|
3.5
|
77.00
|
22
|
|||
|
3.75
|
75.00
|
20
|
|||
|
4
|
76.00
|
19
|
|||
|
100mm
|
1
|
100.00
|
100
|
31.743
或（or）44.443 |
18
|
|
1.25
|
80
|
||||
|
1.5
|
102.00
|
68
|
|||
|
1.75
|
101.50
|
58
|
22
|
||
|
2
|
100.00
|
50
|
|||
|
2.25
|
101.25
|
45
|
|||
|
2.5
|
100.00
|
40
|
|||
|
2.75
|
99.00
|
36
|
|||
|
3
|
102.0
|
34
|
|||
|
3.25
|
100.75
|
31
|
|||
|
3.5
|
101.50
|
29
|
24
|
||
|
3.75
|
101.25
|
27
|
|||
|
4
|
100.00
|
25
|
|||
|
4.5
|
99.00
|
22
|
|||
|
5
|
100.00
|
20
|
|||
|
5.5
|
104.50
|
19
|
|||
|
6
|
108.00
|
18
|
|||
|
125mm
|
4
|
124.00
|
31
|
31.743
或（or） 44.443 |
30
|
|
4.5
|
126.00
|
28
|
|||
|
5
|
125.00
|
25
|
|||
|
5.5
|
126.50
|
23
|
|||
|
6
|
126.00
|
21
|
|||
|
6.5
|
123.50
|
19
|
|||
|
7
|
126.00
|
18
|
|||
|
8
|
128.00
|
16
|
|||
|
160mm
|
6
|
162.00
|
27
|
88.9
|
35
|
|
6.5
|
162.50
|
25
|
|||
|
7
|
161.00
|
23
|
|||
|
8
|
160.00
|
20
|
|||
|
9
|
162.00
|
18
|
|||
|
10
|
160.00
|
16
|
|||
|
200mm
|
8
|
200.00
|
25
|
101.6
|
40
|
|
9
|
198.00
|
22
|
|||
|
10
|
200.00
|
20
|
|||
|
11
|
198.00
|
18
|
|||
|
12
|
204.00
|
17
|
