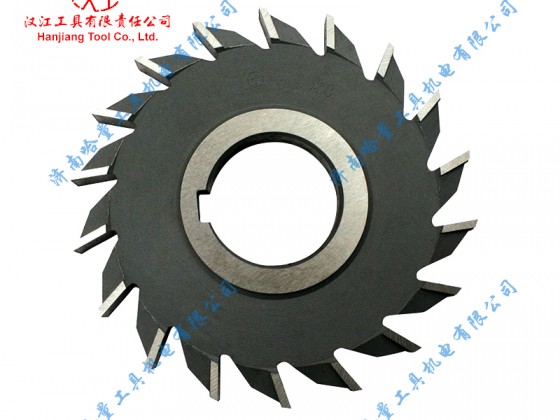

汉江直齿三面刃铣刀
型号:直齿三面刃铣刀
规格:直齿三面刃铣刀
产品简介:
| 直齿三面刃铣刀按GB/T6119.1-1996生产 | ||
| 规格范围:Φ50～Φ100 | ||
| 宽 度:4～25 | ||
| 亦可按GB1117-73生产 | ||
| 规格范围:Φ63～Φ100 | ||
| 宽 度:6～20 |
(GB/T6119.1-1996)
|
编 号
|
直径D | 宽 度 L | 孔 径 d | 齿 数 | 键 宽 b | ||
| 尺 寸 | 偏 差 | ||||||
|
普通级 A |
精密级 B |
||||||
|
22401-017A
B |
50
|
4
|
+0.075
0.0 |
+0.018
0.0 |
16
|
12
|
4
|
|
018A
B |
5
|
||||||
|
019A
B |
6
|
||||||
|
020A
B |
7
|
+0.09
0.0 |
0.0 |
||||
|
021A
B |
8
|
||||||
|
022A
B |
10
|
||||||
|
023A
B |
63
|
4
|
+0.075
0.0 |
+0.018
0.0 |
22
|
14
|
14
|
|
024A
B |
5
|
||||||
|
025A
B |
6
|
||||||
|
026A
B |
7
|
+0.09
0.0 |
+0.022
0.0 |
||||
|
027A
B |
8
|
||||||
|
028A
B |
10
|
||||||
|
029A
B |
12
|
+0.11
0.0 |
+0.027
0.0 |
||||
|
030A
B |
14
|
||||||
|
031A
B |
16
|
||||||
|
032A
B |
80
|
5
|
+0.075
0.0 |
+0.018
0.0 |
27
|
16
|
7
|
|
033A
B |
6
|
||||||
|
034A
B |
7
|
+0.09
0.0 |
+0.022
0.0 |
||||
|
035A
B |
8
|
||||||
|
036A
B |
10
|
||||||
|
037A
B |
12
|
+0.11
0.0 |
+0.027
0.0 |
||||
|
038A
B |
14
|
||||||
|
039A
B |
16
|
||||||
|
040A
B |
18
|
||||||
|
041A
B |
20
|
+0.13
0.0 |
+0.033
0.0 |
||||
|
042A
B |
100
|
6
|
+0.075
0.0 |
+0.018
0.0 |
32
|
18
|
8
|
|
043A
B |
7
|
+0.09
0.0 |
+0.022
0.0 |
||||
|
044A
B |
8
|
||||||
|
045A
B |
10
|
||||||
|
046A
B |
12
|
+0.11
0.0 |
+0.027
0.0 |
||||
|
047A
B |
14
|
||||||
|
048A
B |
16
|
||||||
|
049A
B |
18
|
||||||
|
050A
B |
20
|
+0.13
0.0 |
+0.033
0.0 |
||||
|
051A
B |
22
|
||||||
|
052A
B |
25
|
||||||
(GB1117-73)
| 编 号 | 直径D | 宽度L | 孔径d | 齿 数 | 键宽b |
|
22401-001
|
63
|
6
|
22
|
14
|
6.08
|
|
002
|
8
|
||||
|
003
|
10
|
||||
|
004
|
12
|
||||
|
005
|
14 | ||||
|
006
|
80
|
8
|
27
|
16
|
|
|
007
|
10
|
||||
|
008
|
12 | ||||
|
009
|
14 | ||||
|
010
|
16
|
||||
|
011
|
100
|
10
|
32
|
18
|
8.1
|
|
012
|
12
|
||||
|
013
|
14
|
||||
|
014
|
16
|
||||
|
015
|
18
|
||||
|
016
|
20
|
